We have seen how to create/initialize and use dataTable with fixed column(s).

How to initialize dataTable columns with fixed width ?

Solution:

jQuery DataTable can be initialized with fixed width column. Sometimes it is necessary to give fixed width to particular or all columns of the table. To initialize dataTable with fixed columns , we can use it's "columnDefs" option while initializing.

How to use it ?

Let's create a table and give fixed width to it. As we already seen earlier

ADD CSS
<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap.min.css">
<link rel="stylesheet" href="https://cdn.datatables.net/1.10.12/css/dataTables.bootstrap.min.css">
<link rel="stylesheet" href="https://cdn.datatables.net/fixedcolumns/3.2.2/css/fixedColumns.bootstrap.min.css">

ADD necessary Js libraries for dataTable
<script src="https://code.jquery.com/jquery-2.2.4.min.js" type="text/javascript" ></script>
<script src="https://cdn.datatables.net/1.10.12/js/jquery.dataTables.min.js" type="text/javascript" ></script>
<script src="https://cdn.datatables.net/1.10.12/js/dataTables.bootstrap.min.js" type="text/javascript" ></script>
<script src="https://cdn.datatables.net/fixedcolumns/3.2.2/js/dataTables.fixedColumns.min.js" type="text/javascript" ></script>

ADD Your Table markup to your HTML Page
<div class="container-fluid">
  <div class="col-md-12">
    <table id="example" class="table table-striped table-bordered nowrap" cellspacing="0" width="100%">
        <thead>
            <tr>
                <th>First name</th>
                <th>Last name</th>
                <th>Position</th>
                <th>Office</th>
                <th>Age</th>
                <th>Start date</th>
                <th>Salary</th>
                <th>Extn.</th>
                <th>E-mail</th>
            </tr>
        </thead>
        <tbody>
            <tr>
                <td>Tiger</td>
                <td>Nixon</td>
                <td>System Architect</td>
                <td>Edinburgh</td>
                <td>61</td>
                <td>2011/04/25</td>
                <td>$320,800</td>
                <td>5421</td>
                <td>t.nixon@datatables.net</td>
            </tr>
            <tr>
                <td>Garrett</td>
                <td>Winters</td>
                <td>Accountant</td>
                <td>Tokyo</td>
                <td>63</td>
                <td>2011/07/25</td>
                <td>$170,750</td>
                <td>8422</td>
                <td>g.winters@datatables.net</td>
            </tr>
            <tr>
                <td>Ashton</td>
                <td>Cox</td>
                <td>Junior Technical Author</td>
                <td>San Francisco</td>
                <td>66</td>
                <td>2009/01/12</td>
                <td>$86,000</td>
                <td>1562</td>
                <td>a.cox@datatables.net</td>
            </tr>
            <tr>
                <td>Cedric</td>
                <td>Kelly</td>
                <td>Senior Javascript Developer</td>
                <td>Edinburgh</td>
                <td>22</td>
                <td>2012/03/29</td>
                <td>$433,060</td>
                <td>6224</td>
                <td>c.kelly@datatables.net</td>
            </tr>
            <tr>
                <td>Airi</td>
                <td>Satou</td>
                <td>Accountant</td>
                <td>Tokyo</td>
                <td>33</td>
                <td>2008/11/28</td>
                <td>$162,700</td>
                <td>5407</td>
                <td>a.satou@datatables.net</td>
            </tr>


        </tbody>
    </table>
  </div>
</div>

Now Time to initialize DataTable:

$(document).ready(function() {
    var table = $('#example').DataTable( {
        scrollX:        true,
        scrollCollapse: true,
        paging:         true,
        columnDefs: [
        { "width": "150px", "targets": [0, 1,2] },
        { "width": "40px", "targets": [4] }
      ]
    } );
} );

Preview:

See the Pen Bootstrap jquery dataTable fixed columns Width by Yashwant Patel (@yashwant) on CodePen.


Download Source
Tags: → →

JQuery DataTable - give fixed width to one or more columns

By yash → Monday, June 27, 2016
Posted by yash at 10:05 PM 0 comments
Labels: , ,

What is JQuery DataTable ?

Answer: DataTables is a plug-in for the jQuery which can provide lots of functionalities.
Some of them are as follows:

  • Pagination
  • Instant search
  • Column Sorting
  • Fixed Table columns on lower resolution
  • Fixed Table header
  • Selecting particular row and lot more..
Sometime there is a requirement that we have to use fixed columns for table with search and pagination features. Custom pagination with fixed column for table can be tricky to implement, specially for responsive website. In this case JQuery DataTable can be a very good solution.

In this chapter we will see how to create responsive table with fixed columns. We will be using Twitter Bootstrap to make responsive table.
First Let's add all necessary CSS and JavaScript libraries.

Add following CSS files in head tag of your HTML file
<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap.min.css">
<link rel="stylesheet" href="https://cdn.datatables.net/1.10.12/css/dataTables.bootstrap.min.css">
<link rel="stylesheet" href="https://cdn.datatables.net/fixedcolumns/3.2.2/css/fixedColumns.bootstrap.min.css">

Then add following JS files
<script src="https://code.jquery.com/jquery-2.2.4.min.js" type="text/javascript" ></script>
<script src="https://cdn.datatables.net/1.10.12/js/jquery.dataTables.min.js" type="text/javascript" ></script>
<script src="https://cdn.datatables.net/1.10.12/js/dataTables.bootstrap.min.js" type="text/javascript" ></script>
<script src="https://cdn.datatables.net/fixedcolumns/3.2.2/js/dataTables.fixedColumns.min.js" type="text/javascript" ></script>

Now you can add your HTML Table like below snippet

<div class="container-fluid">
  <div class="col-md-12">
    <table id="example" class="table table-striped table-bordered nowrap" cellspacing="0" width="100%">
        <thead>
            <tr>
                <th>First name</th>
                <th>Last name</th>
                <th>Position</th>
                <th>Office</th>
                <th>Age</th>
                <th>Start date</th>
                <th>Salary</th>
                <th>Extn.</th>
                <th>E-mail</th>
            </tr>
        </thead>
        <tbody>
            <tr>
                <td>Tiger</td>
                <td>Nixon</td>
                <td>System Architect</td>
                <td>Edinburgh</td>
                <td>61</td>
                <td>2011/04/25</td>
                <td>$320,800</td>
                <td>5421</td>
                <td>t.nixon@datatables.net</td>
            </tr>
            <tr>
                <td>Garrett</td>
                <td>Winters</td>
                <td>Accountant</td>
                <td>Tokyo</td>
                <td>63</td>
                <td>2011/07/25</td>
                <td>$170,750</td>
                <td>8422</td>
                <td>g.winters@datatables.net</td>
            </tr>
            <tr>
                <td>Ashton</td>
                <td>Cox</td>
                <td>Junior Technical Author</td>
                <td>San Francisco</td>
                <td>66</td>
                <td>2009/01/12</td>
                <td>$86,000</td>
                <td>1562</td>
                <td>a.cox@datatables.net</td>
            </tr>
            <tr>
                <td>Cedric</td>
                <td>Kelly</td>
                <td>Senior Javascript Developer</td>
                <td>Edinburgh</td>
                <td>22</td>
                <td>2012/03/29</td>
                <td>$433,060</td>
                <td>6224</td>
                <td>c.kelly@datatables.net</td>
            </tr>
            <tr>
                <td>Airi</td>
                <td>Satou</td>
                <td>Accountant</td>
                <td>Tokyo</td>
                <td>33</td>
                <td>2008/11/28</td>
                <td>$162,700</td>
                <td>5407</td>
                <td>a.satou@datatables.net</td>
            </tr>


        </tbody>
    </table>
  </div>
</div>

Your HTML Table is ready by now and we can initialize this table using dataTable.
We have already added JQuery, so when DOM gets ready, we can initialize out dataTable. Add following Script below all your JS files or create an external JS and add at the bottom of HTML.

$(document).ready(function() {
    var table = $('#example').DataTable( {
        scrollX:        true,
        scrollCollapse: true,
        paging:         true,
        autoWidth: false,
        fixedColumns: {
            leftColumns: 2
        }
    } );
} );

Here we initialized our table with 2 left fixed columns. DataTable can be initialize with lot more options. For all other options please refer to DataTable Options link

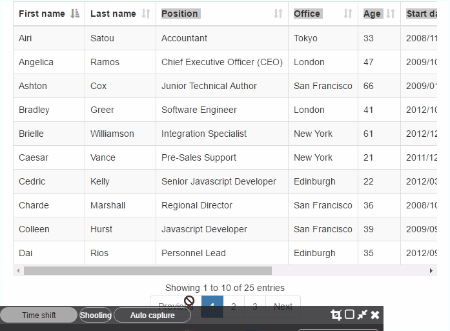

Preview
See the Pen Bootstrap jquery dataTable fixed columns by Yashwant Patel (@yashwant) on CodePen.

Download Source

Tags: → → →

JQuery responsive dataTable with fixed columns

By yash → Wednesday, June 22, 2016
Posted by yash at 3:14 AM 0 comments
Labels: , , ,
